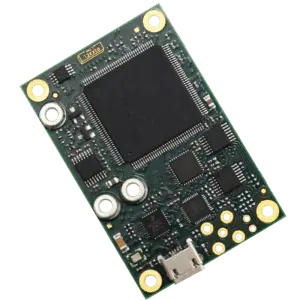

Analog YPbPr Full-HD interface for block cameras

SL4655
SL4655 is an analog YPbPr Full-HD interface with a small form factor. The camera’s LVDS video input signals are demultiplexed, processed, converted to analog and output via a 6-pin board cable connector.
Camera control is via a transparent full-duplex communication channel. The physical interface between camera and camera controller/PC is based on RS232, 3.3 V CMOS (LVTTL compatible) or RS485 (optional).

Features SL4655

  • =High resolution analog HD YPbPr output
  • =Seamlessly connects to Zoom camera blocks with industry-standard LVDS interface
  • =RS232 and 3,3V CMOS level serial camera control interface
  • =RS485 camera control interface (optional)
  • =RoHS and UL/UR compliant

SL4655 Video Standard

The SL4655 supports the following HDTV video standards. Note that the availability of video standards depends on the capabilities of the camera block used.

Video standard
1080p30Hz29.97Hz25Hz
1080i60Hz59.94Hz50Hz
720p60Hz59.94Hz50Hz30Hz29.97Hz25Hz

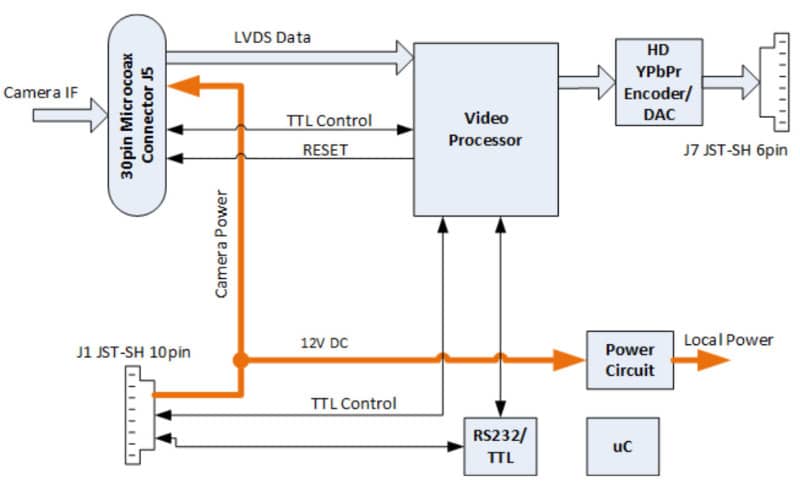

Block diagram SL4655

SL4655 High Definition analog HD-YPbPr interface - block diagram

Request for quotation

Look at the production and evaluation kits with which you can test and use our product in your environment. Request today!

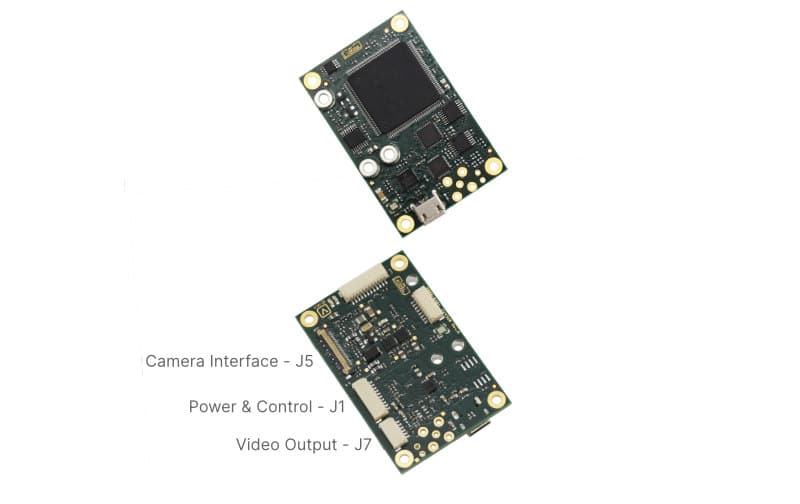

Connections

SL4655 SL4655 High Definition analog HD-YPbPr interface - PCB connections

Connections overview

Power supply and RS232/ TTL control interface (J1)

10-pin connector: JST BM10B-SRSS-TB

1 DC In
2 DC In
3 GND
4 GND
5 Pull pin 5 to GND(0V) for 1 ms or longer for reset, and leave open for normal operation.
6 GND
7 TXD_3V3 (serial IF transmit 3.3V CMOS)
8 RXD_3V3 (serial IF receive 3.3V CMOS)
9 RXD_232 (serial IF receive RS232 level)
10 TXD_232 (serial IF transmit RS232 level)

LVDS Video (J5)

KEL 30 connector for micro coaxial cable

LVDS digital video from camera
serial control interface
Power

Analog YPbPr video connection (J7)

6-pin connector: JST SM6B-SRSS-TB

1 Y signal output
2 GND (0V)
3 Pb signal output
4 GND (0V)
5 Pr signal output
6 GND (0V)

General information

Measurements

Board size= 55mm x36mm
+ Component height top side = 3.0mm (spacer), 6.5mm (J6)
+ Max. component height bottom side = 3.0mm (J1, J4)
+ PCB thickness 1.44mm
+ Mounting holes drill diameter 2,6mm, land diameter 5,0mm

Power supply

9V to 12V DC regulated supply input voltage range

Power consumption

PD = 4.08W (MP1110M-VC camera lens steady +SL4655)
PD = 4.56W (FCB-EV7520A camera lens steady +SL4655)
PSL4655 = 1.28W (typ.)
(12V DC supply, 1920×1080@30fps, TA = 25°C, Humididty = 40%)

Operating conditions

Ambient temperature (min/max) -10°C/60°C
Humidity: 20%-80%

Storage conditions

Temperature (min/max): -20°C/+ 60°C = -4°F/140°F
Humidity: 20%-80%
