3G-SDI fiber optic transmitter for block cameras (two lines)

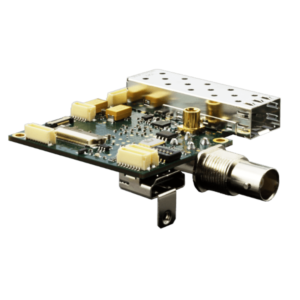

TL7070
The AIVION TL7070 interface with 3G/HD-SDI optical output with SFP compatible transmitter enables the transmission of 3G/HD-SDI video signals from HD block cameras. This means that distances of more than 10 kilometers can be bridged between the camera and the display/recorder device. The completely digital signal processing chain guarantees the best image quality. The camera is controlled via RS232 (supporting the Sony Visca protocol).
Features TL7070 – 3G Fiber Transmitter
- =LVDS digital video input from camera
- =Automatic detection of camera and video standard
- =Optical 3G/HD-SDI output based on an SFP compatible transmitter
- =Optical transmitter 1310nm/10km/LC for SMF included
- =BNC and MCX coax 3G/HD-SDI outputs
- =HD-SDI outputs compatible with SMPTE425M/424M/292M/274M/296M
- =DVI (HDMI port) video output
- =Native digital signal processing chain for best image quality (no scaling)
- =Output for analog HDTV YPbPr and CVBS video from the camera
- =Dual serial control interface (RS232 or 3.3V TTL)
- =Supply voltage: 7V to 12V DC regulated
Block Diagram TL7070 – 3G Fiber Transmitter
Request for quotation
Look at the production and evaluation kits with which you can test and use our product in your environment. Request today!
TL7070 Video Standard
The TL7070 supports the following HDTV video standards. Note that the availability of video standards depends on the capabilities of the camera block used.
| Video standard | ||||||
|---|---|---|---|---|---|---|
| 1080p | 60Hz | 59.94Hz | 50Hz | 30Hz | 29.97Hz | 25Hz |
| 1080i | 60Hz | 59.94Hz | 50Hz | 30Hz | 29.97Hz | 25Hz |
| 720p | 60Hz | 59.94Hz | 50Hz | 30Hz | 29.97Hz | 25Hz |
Connections

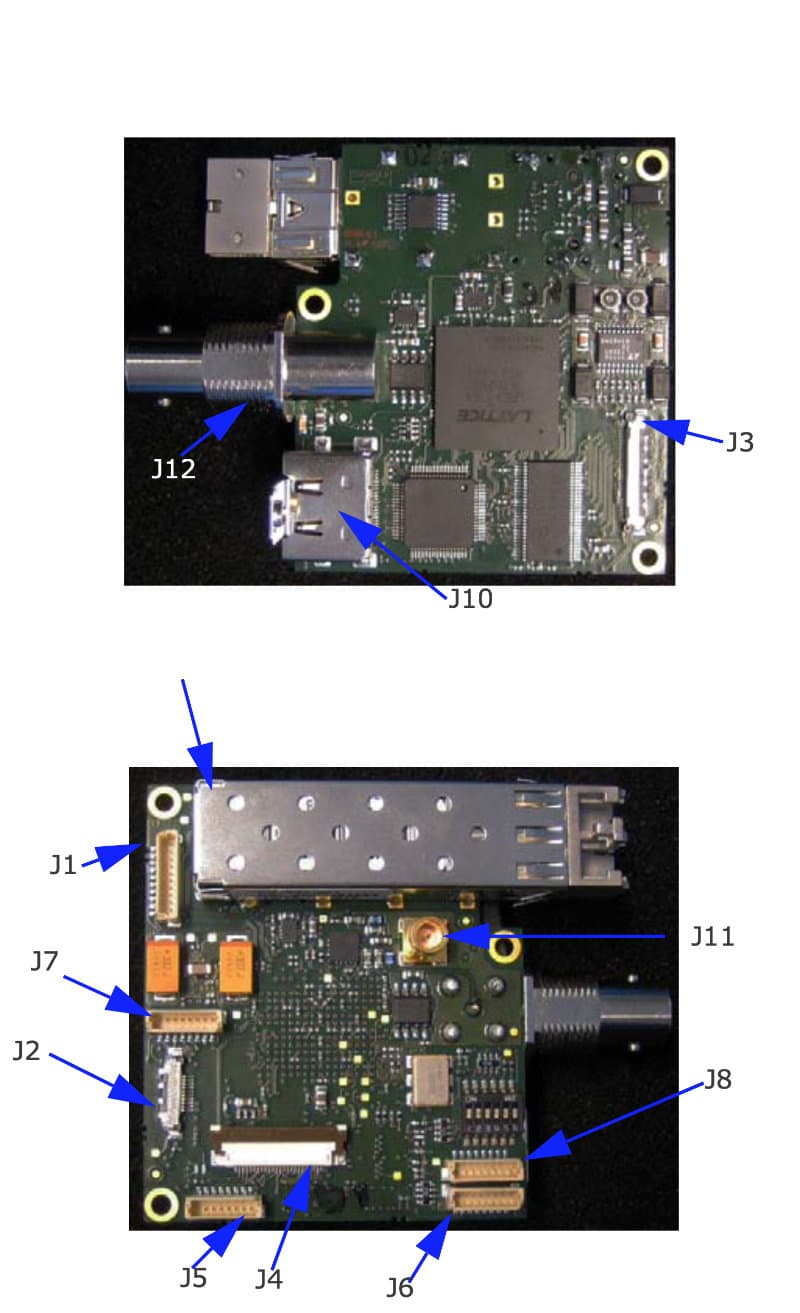

Connections overview
Power supply and RS232/ TTL control interface (J1)
10-pin connector: JST BM10B-SRSS-TB
1 DC In
2 DC In
3 GND
4 GND
5 Reset / Shut Down, pull to GND to reset / shut down TL7075 and camera.
6 GND
7 TXD_TTL (serial IF transmit, 3.3V) and/or temperature alert output
8 RXD_TTL (serial IF receive, 3.3V)
9 RXD_232 (serial IF receive, RS232 level)
10 TXD_232 (serial IF transmit, RS232 level)
YPbPr and CVBS analog component output (J5)
8 pin connector: JST BM08B-SSRS-TB
1 Pr
2 GND
3 Pb
4 GND
5Y
6 GND
7 CVBS
8 GND
External control/reset (J8)
8 pin connector: JST BM08B-SSRS-TB
2 SPARE (reserved)
3 SPARE (reserved)
4 SPARE (reserved)
5 SPARE (reserved)
6 SPARE (reserved)
7 RESET EXTERNAL (has 10kOhm pullup)
8 GND
SFP compatible optical transmitter (J9)
HDMI output connector type HDMR (J10)
Samtec No. 19-02-F-SM
3G/HD-SDI output (J11, J12)
75 ohm MCX socket

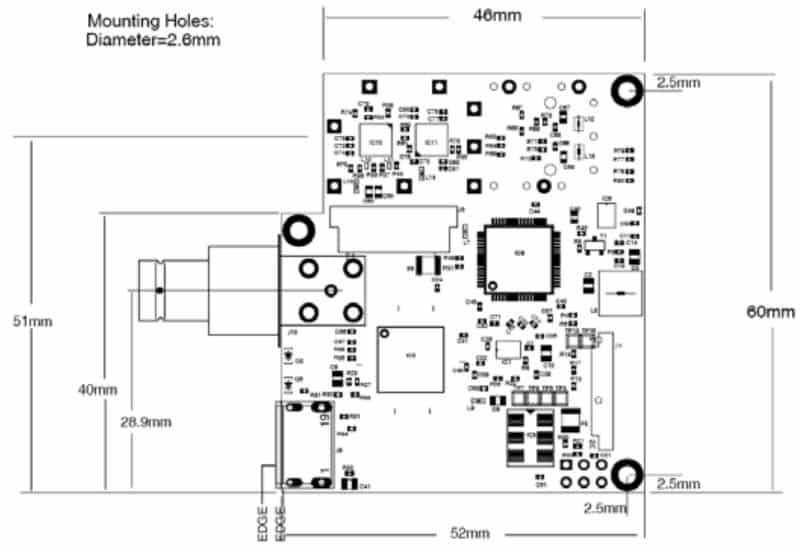

Board dimensions
