3G/HD-SDI to HDMI converter Extended operating temperature range
NA1011-ET
NA1011-ET is a very small form factor SDI to HDMI converter module. It is designed for applications where minimal size and a wide operating temperature range are top priorities.
SDI video input and retimed SDI output are available on two straight MCX coaxial connectors. HDMI output is available via a full-size HDMI-A port. The HDMI output is always in RGB444 format.
Features NA1011-ET
- =A 3G/HD-SDI input supports the following bit rates according to SMPTE292M and SMPTE424M (Level A) | + 1,485 Gbps, 1,485/1,001 Gbps | + 2.97 Gbps, 2.97/1.001 Gbps
- =3G/HD-SDI loop output with reclocking
- =HDMI RGB444 video output
- =SDI input/output connectors: 75 ohm MCX sockets
- =Native video signal processing and encoding only. No image scaling, no format conversion.
- =Power input + 5V to +18V DC regulated
- = PCB dimensions 38mm x 38mm
NA1011-ET Video Standard
The NA1011-ET supports the following video standards.
| Video standard | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1080p | 60Hz | 59.94Hz | 50Hz | 30Hz | 29.97Hz | 25Hz | 24Hz | 23.98Hz |
| 1080i | 60Hz | 59.94Hz | 50Hz | |||||
| 720p | 60Hz | 59.94Hz | 50Hz |
Block diagram NA1011-ET
Request for quotation
Look at the production and evaluation kits with which you can test and use our product in your environment. Request today!
Connections

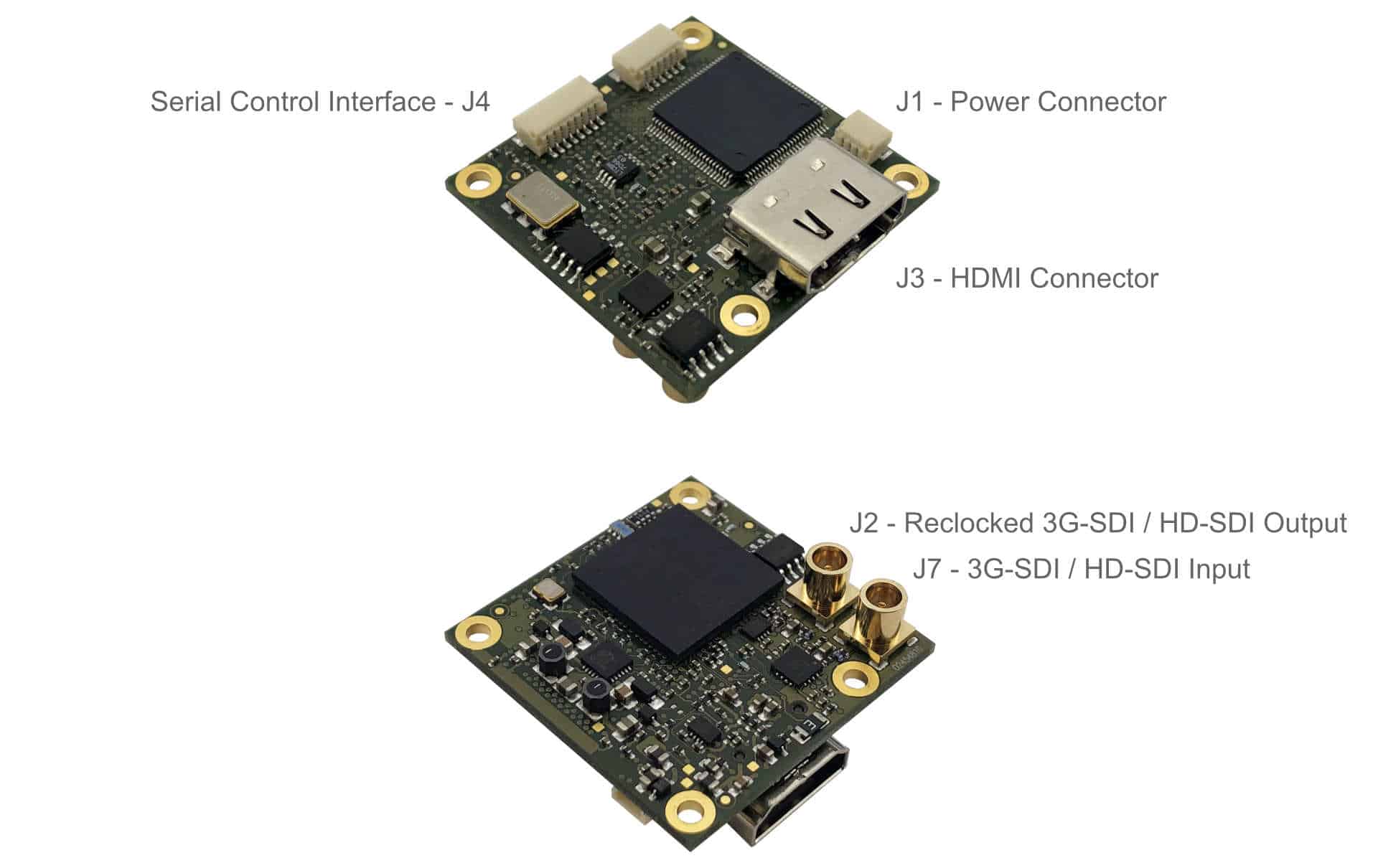

Connections overview
Power Connector (J1)
3-pin connector
1 VIN, DC Supply voltage input
2 Reset (has 4k7 pullup to VIN) . Pull pin 2 to GND(0V) for 1 ms or longer for reset, and leave it open for normal operation.
3 GND (0V)
Reclocked SDI output connector (J2)
MCX 75Ohm
HDMI port (J3)
SDI input connector (J6)
MCX 75Ohm
General information
Measurements
38mm x38mm
Power supply
Supply voltage 12V DC typ.
Power consumption
Operating conditions
– Humidity during operation 20% to 80%
More information about NA1011-ET
- The Nanoconverter products are RoHS, REACH, and UL/UR compliant.
- The device detects and measures the video input parameters and adjusts all necessary settings accordingly. Manual control is not required. However, the serial control interface can be used for status control. Any terminal software can be used, the parameters need to be set to 38400bps, 8 data bits, no parity, and 1 stop bit (8N1). There is no need to use a handshake
- The current device version does not support audio.
- The device version does not handle HDCP encrypted HDMI input signals.

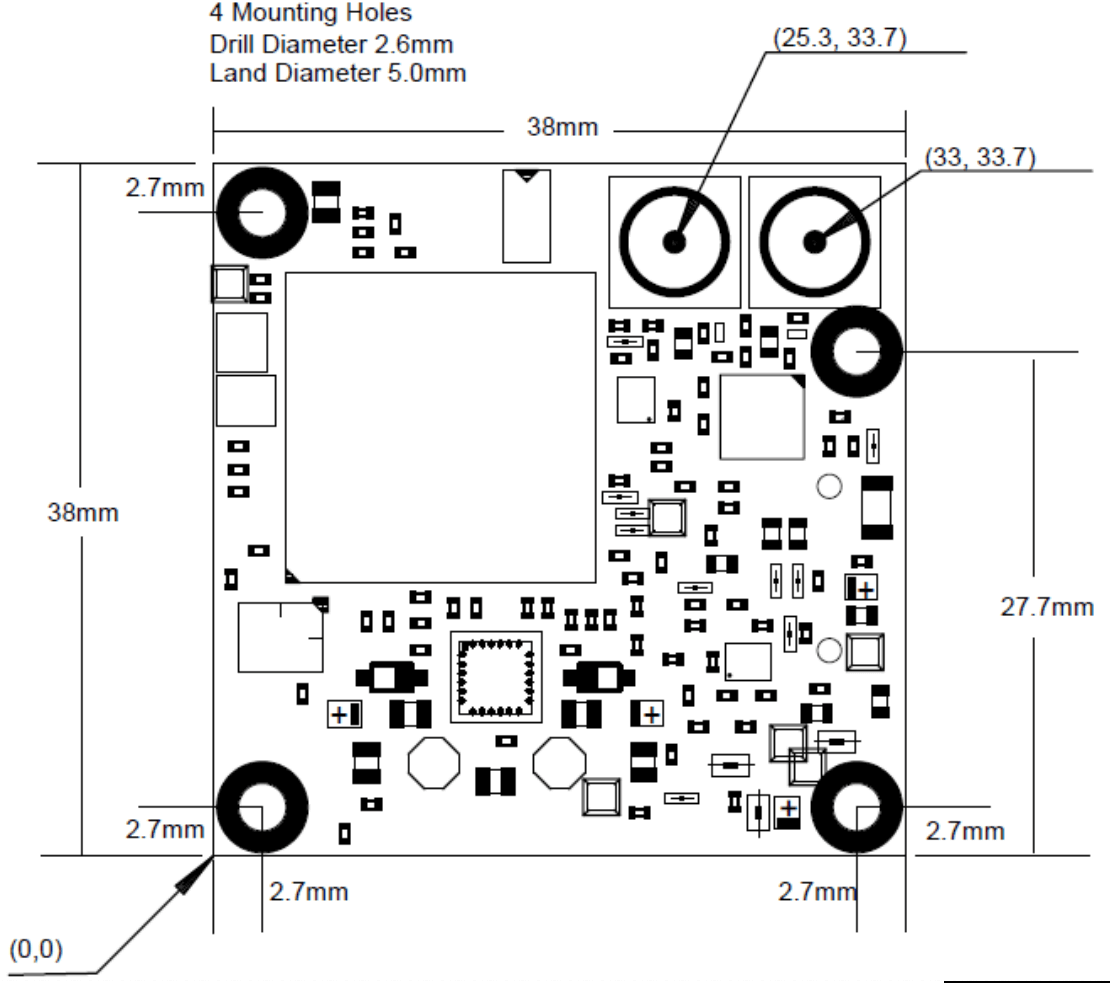

Board dimensions
