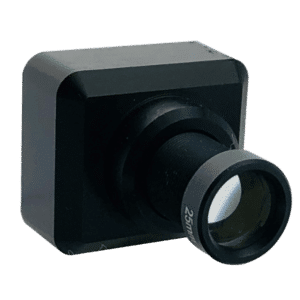

HD-SDI/EX-SDI and CVBS Full-HD color camera

ABM-FSC100-71S

Features ABM-FSC100-71S

  • =SONY Starvis 2Mega 60fps CMOS Sensor
  • =Ultra Low Light Performance (color image at 0.01Lux)
  • =Improved WDR performance (Real WDR 30fps) in digital mode (EX-SDI / HD-SDI)
  • =FuII-HD: 1920x108030p/25p,HD:1280X72060p/50p/30p/25pCVBS:NTSC/PAL D1
  • =Optional Full HD: 1920X1080 60p/50p 1920xl080 60i/50i
  • =Fast (56700 bps) control via Pelco-D and VISCA via UART, RS485 via converter board
  • =Cross Hair Capability
  • =Block command for fast switching between multi-parameter switch pre-sets

ABM-FSC-100-71S Features

ParameterSpezification
Sensor deviceSony 1/2,8 Zoll 2,1 MP Exmor R STARVIS CMOS-Sensor
Total pixels1945 (H) x 1109 (V) 2,16 Megapixel
Effective pixels1945 (H) x 1097 (V) 2,13 Megapixel
ImagingProgressiveScan
HorizontalMore than 1100 TVL
S/N ratioMore than 52 dB
Min. Illumination0,01Lux (F1,2 Q 30IRE)
Shutter speed1/30s standard, (long exposure mode, -lsec)
Video output1080p &720p 60/50/30/25 1080i60/50
Digital outputHD-SDI output / EX-SDI
Analog outputCVBS (NTSC / PAL) – 700 TVL
Day & NightAUTO
Serial portUART Rx/Tx: 56700 bps (3,3 V TTL)
HD-SDI-PortU-FL
Energy sourceDC current 5 V +/- 0.2 V (max.)
Power< 1,5 W
Operating temperature-10 °C to 50 °C
Storage temperature-20 °C to 60 °C
