HD-TVI / AHD interface for block cameras
SL4651

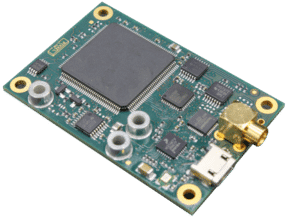

SL4651 is a small form factor analog HD-TVI/AHD video transmitter. The camera’s LVDS video input signals are demultiplexed, processed and output via an MCX coaxial connector.
Camera control is via a transparent full-duplex communication channel. The physical interface between the camera and camera control / PC is based on RS232, 3.3V CMOS (LVTTL compatible), or RS485 (optional).
Features SL4651
- =High resolution analog HD-TVI or AHD output
- =Seamlessly connects to Zoom camera blocks with industry-standard LVDS interface
- =MCX 75 ohm right angle coaxial connectors
- = CVBS loop out (if the camera supports it)
- =RS232 and 3,3V CMOS level serial camera control interface
- =RS485 camera control interface (optional)
- =Supply voltage 9V to12V DC regulated
- =RoHS and UL/UR compliant
SL4651 Video Standard
The SL4651 supports the following video standards. Note that the availability of video standards depends on the capabilities of the camera block used.
| Video standard | ||||
|---|---|---|---|---|
| 1080p | 30Hz | 25Hz | ||
| 720p | 60Hz | 50Hz |

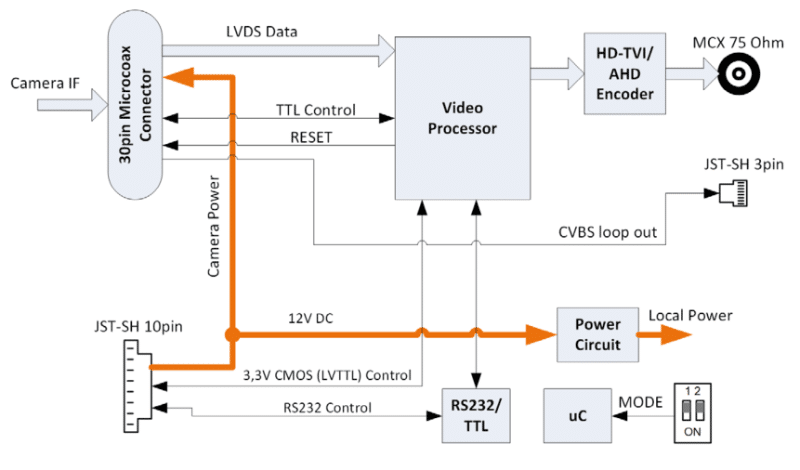

Block diagram SL4651
Request for quotation
Look at the production and evaluation kits with which you can test and use our product in your environment. Request today!
Connections

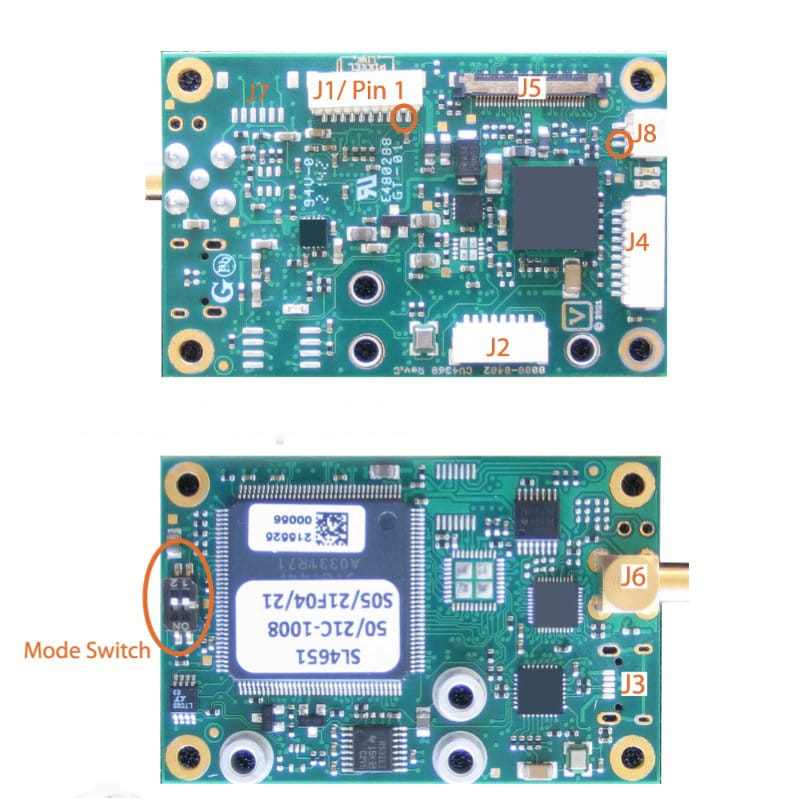

Connections overview
Power supply and RS232/ TTL control interface (J1)
10-pin connector: JST BM10B-SRSS-TB
1 DC In
2 DC In
3 GND
4 GND
5 Pull pin 5 to GND(0V) for 1 ms or longer for reset, and leave open for normal operation.
6 GND
7 TXD_3V3 (serial IF transmit 3.3V CMOS)
8 RXD_3V3 (serial IF receive 3.3V CMOS)
9 RXD_232 (serial IF receive RS232 level)
10 TXD_232 (serial IF transmit RS232 level)
LVDS Video (J5)
KEL 30 connector for micro coaxial cable
LVDS digital video from camera
serial control interface
Power
HD-TVI/AHD output connector (J6)
Samtec MCX7-J-P-H-RA-TH1
CVBS Loop out (J8)
KJST SM03B-SRSS-TB
1 GND (0V)
2 CVBS loop out from 30-pin camera connector – The CVBS output on the 30-pin connector must be supported by the camera.
3 GND (0V)
General information
Measurements
+ Component height top side = 3.0mm (spacer), 6.5mm (J6)
+ Max. component height bottom side = 3.0mm (J1, J4)
+ PCB thickness 1.44mm
+ Mounting holes drill diameter 2,6mm, land diameter 5,0mm
Power supply
9V to 12V DC regulated supply input voltage range
Power consumption
PD = 4.56W (FCB-EV7520A camera lens steady +SL4651)
PSL4651 = 1.28W (typ.)
(12V DC supply, 1920×1080@30fps, TA = 25°C, Humididty = 40%)
Operating conditions
Ambient temperature (min/max) -10°C/60°C
Humidity: 20%-80%
Storage conditions
Temperature (min/max): -20°C/+ 60°C = -4°F/140°F
Humidity: 20%-80%
