HDMI to 3G/HD-SDI converter - extended temperature range

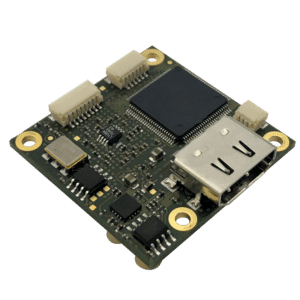

NA1012-ET
NA1012-ET is an HDMI to SDI converter module with a very small form factor It is designed for applications where minimal size and a wide operating temperature range are top priorities. SDI video output is available on two straight MCX coaxial connectors.
NA1012-ET converts video signals received from a DVI or HDMI source for transmission over a 3G/HD-SDI interface, which requires the clock signals to be within a well-defined range. This may not be the case when using the standard HDMI or DVI output of desktop computers, laptops, or other consumer devices as a signal source.
NA1012-ET converts video signals received from a DVI or HDMI source for transmission over a 3G/HD-SDI interface, which requires the clock signals to be within a well-defined range. This may not be the case when using the standard HDMI or DVI output of desktop computers, laptops, or other consumer devices as a signal source.
Features NA1012-ET
- =HDMI 1.4a video input
- =Resolution up to 1920x1080p @ 60fps
- =Support RGB444, YCbCr444 and YCbCr422 input formats
- =Two SDI outputs support bit rates according to SMPTE292M and SMPTE424M, 1.485 Gbps, 1.485/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps
- =Video output connectors: 75 ohm MCX jacks
- =Native video signal processing and encoding only. No image scaling, no format conversion.
- =Power input + 5V to +18V DC regulated
- =PCB dimensions 38mm x 38mm
NA1012-ET Video Standard
The NA1012-ET supports the following HDMI video standards.
| Video standard | ||||||||
|---|---|---|---|---|---|---|---|---|
| 1080p | 60Hz | 59.94Hz | 50Hz | 30Hz | 29.97Hz | 25Hz | 24Hz | 23.98Hz |
| 1080i | 60Hz | 59.94Hz | 50Hz | |||||
| 720p | 60Hz | 59.94Hz | 50Hz |

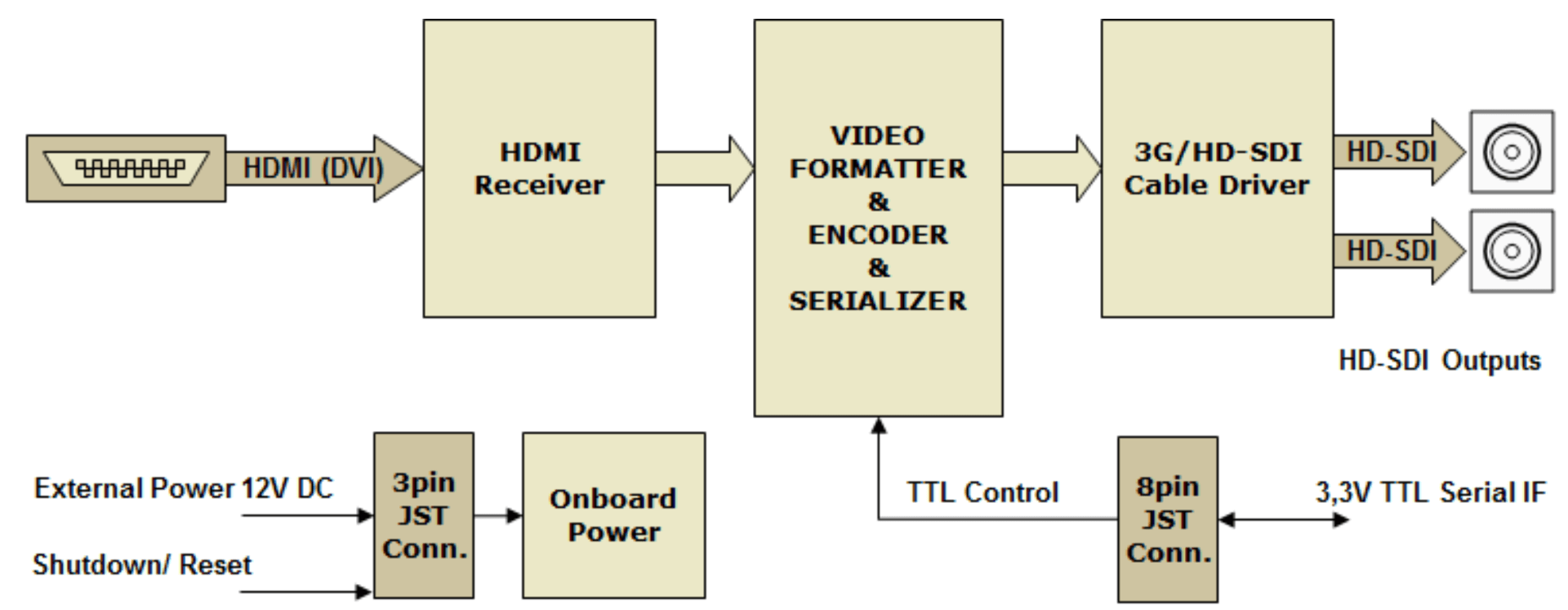

Block diagram NA1012-ET
Request for quotation
Look at the production and evaluation kits with which you can test and use our product in your environment. Request today!
Connections

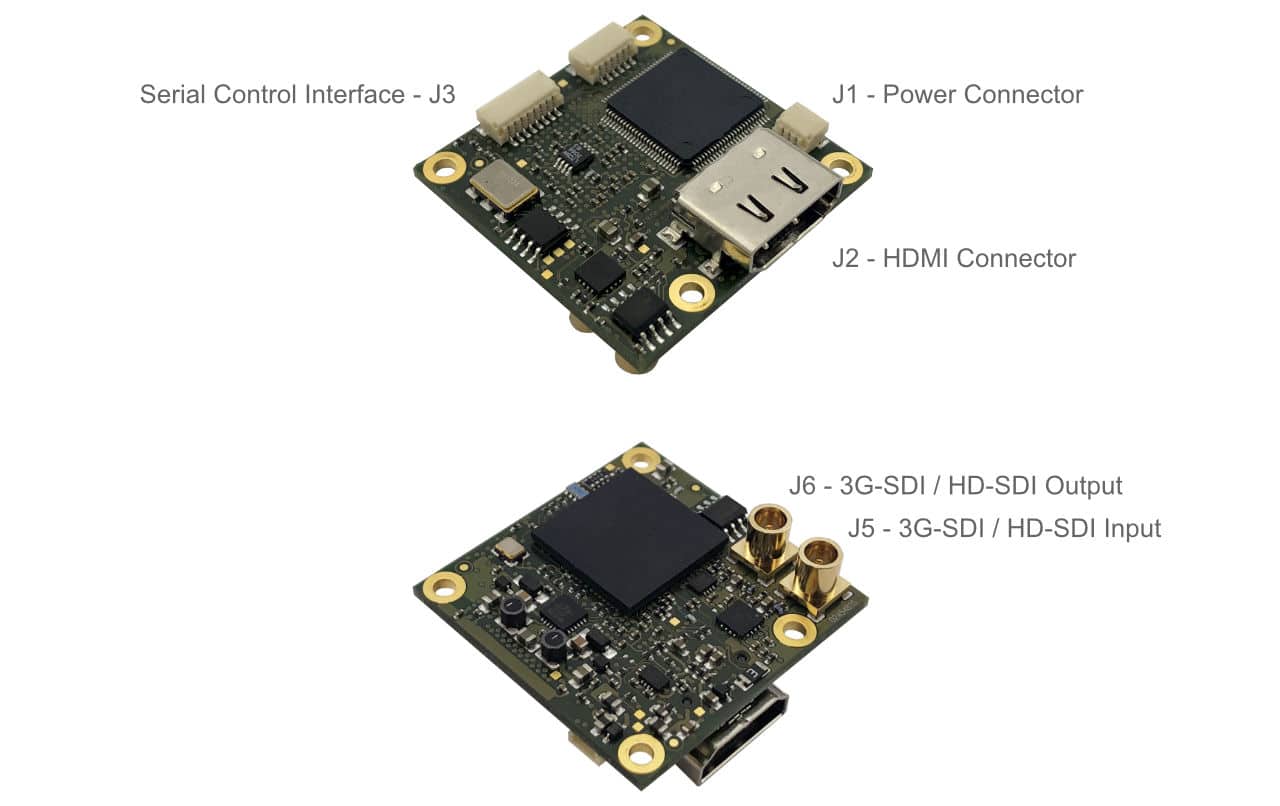

Connections overview
Power Connector (J1)
3-pin connector
1 VIN, DC Supply voltage input
2 Reset (has 4k7 pullup to VIN) . Pull pin 2 to GND(0V) for 1 ms or longer for reset, and leave it open for normal operation.
3 GND (0V)
HDMI Connector (J2)
Pin assignment according to HDMI standard
SDI output connector (J5)
MCX 75Ohm
SDI output connector (J6)
MCX 75Ohm
General information
Measurements
38mm x38mm
Power supply
Supply voltage 12V DC typ.
Power consumption
2.3 W (12V DC supply, 1080p50 video)
Operating conditions
– Operating temperature range -25°C to +85°C
– Humidity during operation 20% to 80%
– Humidity during operation 20% to 80%
More information about NA1012-ET
- NA1012-ET converts video signals received from a DVI or HDMI source for transmission over a 3G/HD-SDI interface that requires clock signals in a well-defined range. This may not be the case when using the standard HDMI or DVI output of desktop computers, laptops, or other consumer devices as a signal source.
The HDMI/DVI TMDS input clock requirements are:
3G-Modus:
148.5MHz or 148.5 MHz/1,001 +/- 60ppm HD mode:
74,25MHz or 74,25MHz/1,001 +/- 80 ppm - The current device version does not support audio.
- NA1012-ET does not handle HDCP encrypted HDMI input signals.
- The device detects and measures the video input parameters and adjusts all necessary settings accordingly. Manual control is not required. However, the serial control interface can be used to check status. Terminal software such as TeraTerm can be used, with the parameters set to 38400bps, 8 data bits, no parity and 1 stop bit (8N1). No handshake may be used.
- Depending on the system configuration and the thermal and mechanical design of the system board, a heat sink may be required. In such a case, the heat sink or heat pipe should be connected to one of the devices marked with a yellow square.

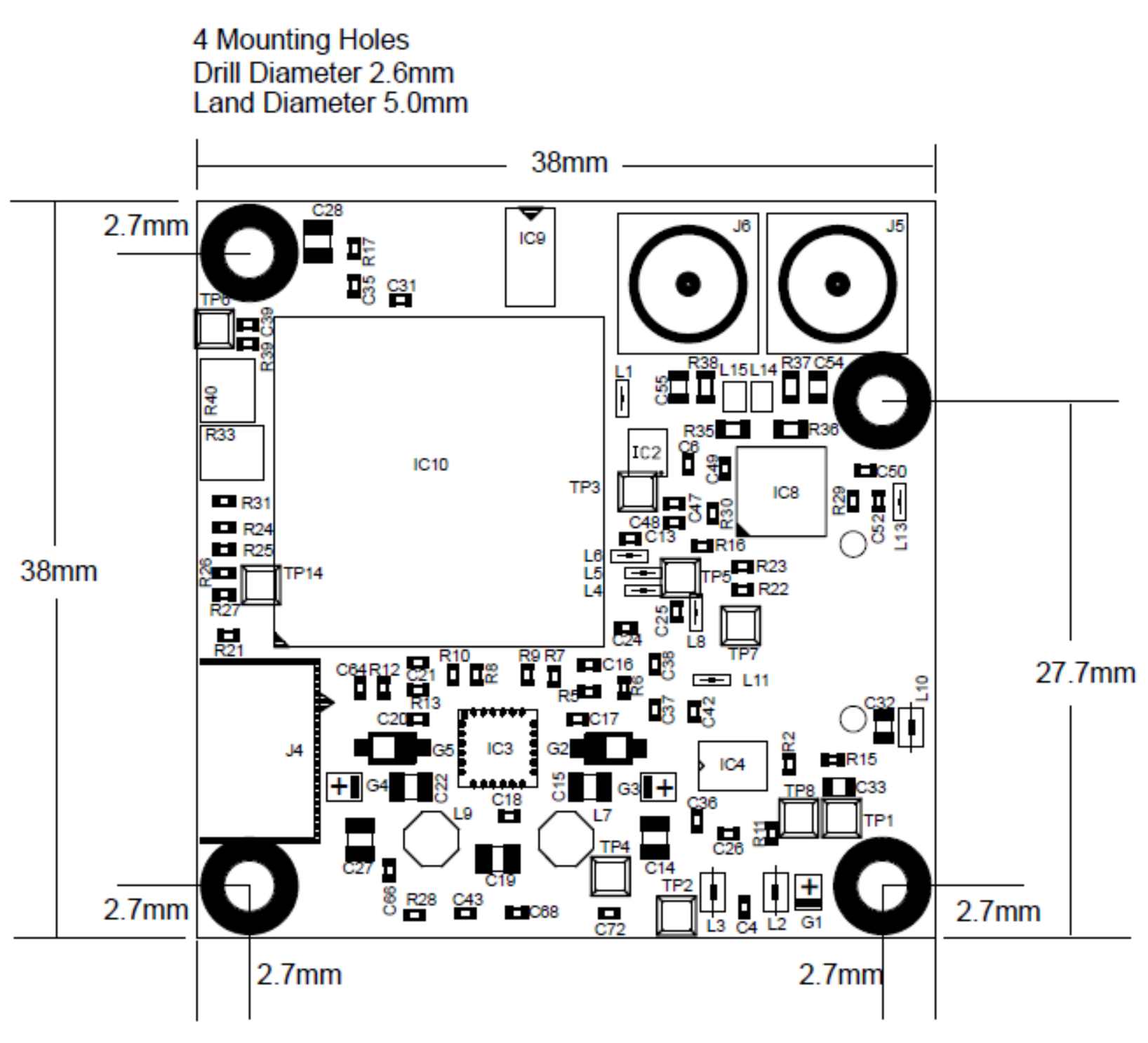

Board dimensions
