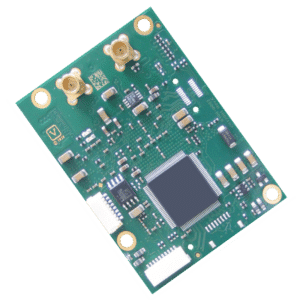

Dual 3 Gbps Ultra HD SDI interface for 4K block cameras
TL4K1161
The TL4K1161 is a small form factor serial digital video interface (SDI). It is connected to the digital video interface (LVDS) of the block camera. Camera video input signals are equalized, processed and output via coaxial connections. The Dual Link 3G-SDI output conforms to SMPTE ST425-3, 2si mapping, the FHD output conforms to SMPTE ST425-1 Level A standards. Camera control is via a transparent full-duplex communication channel. The physical interface between the camera and camera control / PC is based on RS232 or 3.3V TTL level.
Features TL4K1161
- =Video output up to Ultra High Definition
- =Resolution up to 3840x2160p @ 30fps
- = Dual link 3G-SDI output for UHD formats
- =3G-SDI output for FHD formats
- =1.5G-SDI output of HD formats
- =Automatic format detection
- =Native signal processing for highest image quality
- =MCX 75 Ohm straight coaxial connectors
- =RS232 and 3.3V TTL level serial camera control interface
- =Supply voltage 9V to 12V DC regulated
- =RoHS and UL/UR compliant
TL4K1161 Video Standard
The TL4K1161 supports the following TV video standards. Note that the availability of video standards depends on the capabilities of the camera block used.
| Video standard | ||||||
|---|---|---|---|---|---|---|
| 2160p | 30Hz | 29.97Hz | 25Hz | |||
| 1080p | 60Hz | 59.94Hz | 50Hz | |||
| 1080i | 60Hz | 59.94Hz | 50Hz | 30Hz | 29.97Hz | 25Hz |
| 720p | 60Hz | 59.94Hz | 50Hz |

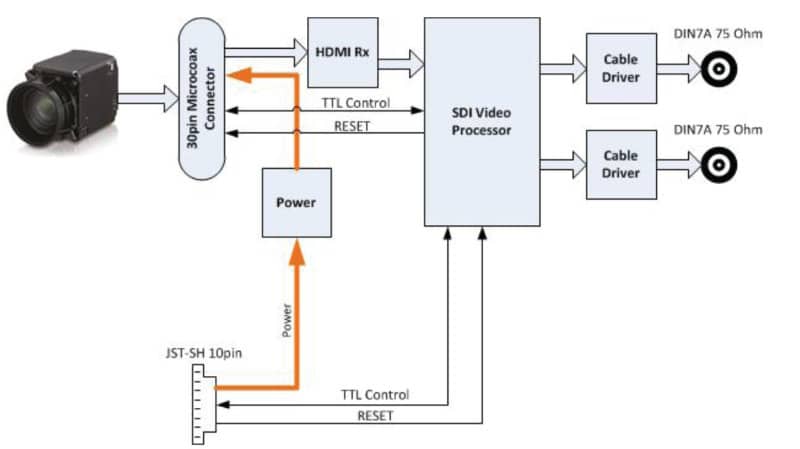

Block diagram TL4K1161
Request for quotation
Look at the production and evaluation kits with which you can test and use our product in your environment. Request today!
Connections
Connections overview
Power supply and RS232/ TTL control interface (J1)
10-pin connector: JST BM10B-SRSS-TB
1 DC supply voltage input
2 DC supply voltage input
3 GND (0V)
4 GND (0V)
5 Pull pin 5 to GND(0V) for 1 ms or longer for reset, and leave open for normal operation.
6 GND
7 TXD_TTL (serial IF transmit 3.3V)
8 RXD_TTL (serial IF receive 3.3V)
9 RXD_232 (serial IF receive RS232 level)
10 TXD_232 (serial IF transmit RS232 level)
HDMI port (J4)
KEL USL00-30L-A
SDI output connector (J7)
Samtec MCX7-J-P-H-ST-TH1
3G/1.5G-SDI FHD/HD output
SDI output connector (J8)
Samtec MCX7-J-P-H-ST-TH1
General information
Measurements
Board size= 46mm x60mm
Max. Max. component height bottom side = 3.2mm (except J7/J8)
Mounting holes drill diameter 3,2mm, land diameter 5,2mm
Power supply
9V to 12V DC (12.5V DC max.) regulated supply input voltage range
Power consumption
PD = 6,72W typ. (FCB-ER8530 lens steady +TL4K1161)
PTL4K1161 = 3,72 W (typ.)
(12V DC supply, 3840×2160@25fps, TA = 25°C, Humididty = 40%)
Operating conditions
Ambient temperature (min/max): -5°C/+ 60°C = 23°F/140°F
Humidity: 20%-80%
Storage conditions
Temperature (min/max): -20°C/+ 60°C = -4°F/140°F
Humidity: 20%-80%

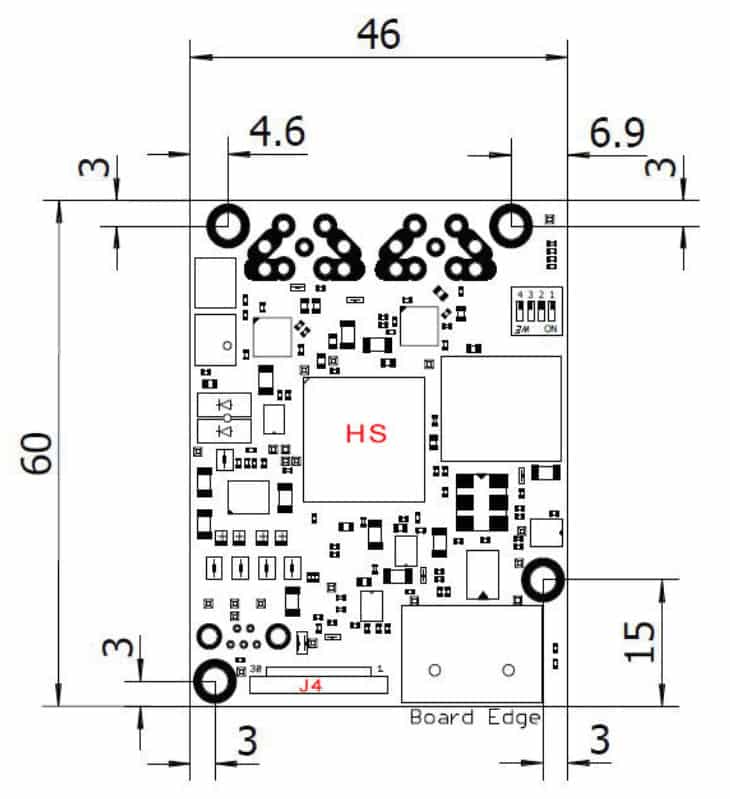

Board dimensions
