Ultra HDMI (1.4b) interface for 4K block cameras

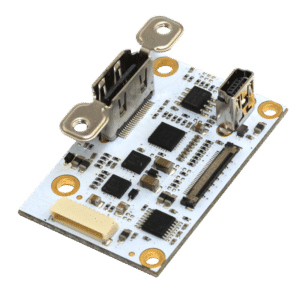

TL4K1152
The TL4K1152 is a digital serial UHD HDMI interface, with a small form factor, optimal for 4K block cameras. It is connected to the digital video interface (LVDS) of the block camera. Camera video input signals are equalized, processed and output via an HDMI (3.4Gbps HDMI1.4b) port. Camera control is via a transparent full-duplex communication channel. The physical interface between the block camera and camera controller/uC/PC is based on the RS232 level or 3.3V TTL level.
Features TL4K1152
- =Ultra high definition video output
- = Integrated input signal equalizer
- =Ultra high speed 3.4Gbps cable driver
- =Up to 3840x2160p @ 30fps HDMI 1.4b video output
- =Serial camera control at RS232 level
- =3.3V TTL level serial camera control
- =Supply voltage 7V to 12V DC regulated
- =RS232 and 3.3V TTL level serial camera control interface
- =Supply voltage 9V to 12V DC regulated
- =Ultra low power consumption - only 150mW@8V supply voltage
- =RoHS and UL/UR compliant
Datasheet TL4K1152
TL4K1152 Video Standard
The TL4K1152 supports the following TV video standards. Note that the availability of video standards depends on the capabilities of the camera block used.
| Video standard | ||||||
|---|---|---|---|---|---|---|
| 2160p | 30Hz | 29.97Hz | 25Hz | |||
| 1080p | 60Hz | 59.94Hz | 50Hz | |||
| 1080i | 60Hz | 59.94Hz | 50Hz | 30Hz | 29.97Hz | 25Hz |
| 720p | 60Hz | 59.94Hz | 50Hz |

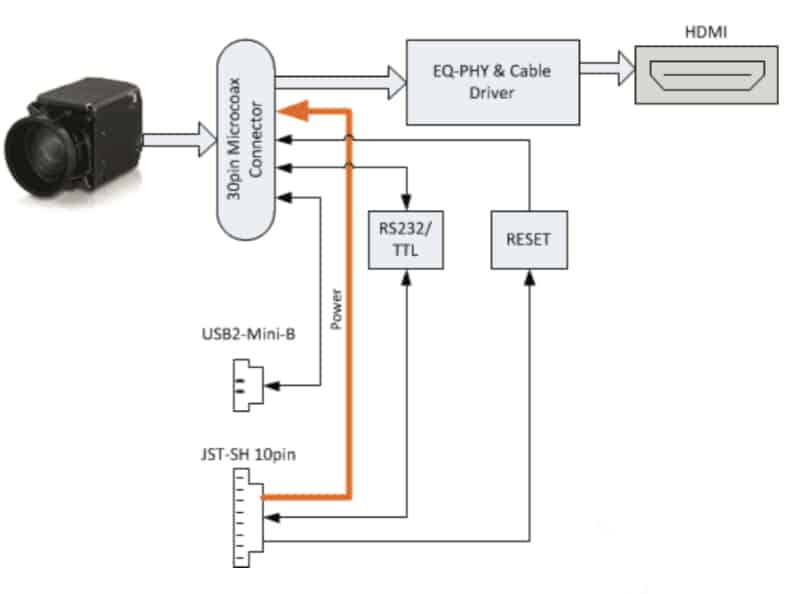

Block diagram TL4K1152
Request for quotation
Look at the production and evaluation kits with which you can test and use our product in your environment. Request today!
Connections
Connections overview
Power supply and RS232/ TTL control interface (J1)
10-pin connector: JST BM10B-SRSS-TB
1 DC supply voltage input
2 DC supply voltage input
3 GND (0V)
4 GND (0V)
5 Pull pin 5 to GND(0V) for 1 ms or longer for reset, and leave open for normal operation.
6 GND
7 TXD_TTL (serial IF transmit 3.3V)
8 RXD_TTL (serial IF receive 3.3V)
9 RXD_232 (serial IF receive RS232 level)
10 TXD_232 (serial IF transmit RS232 level)

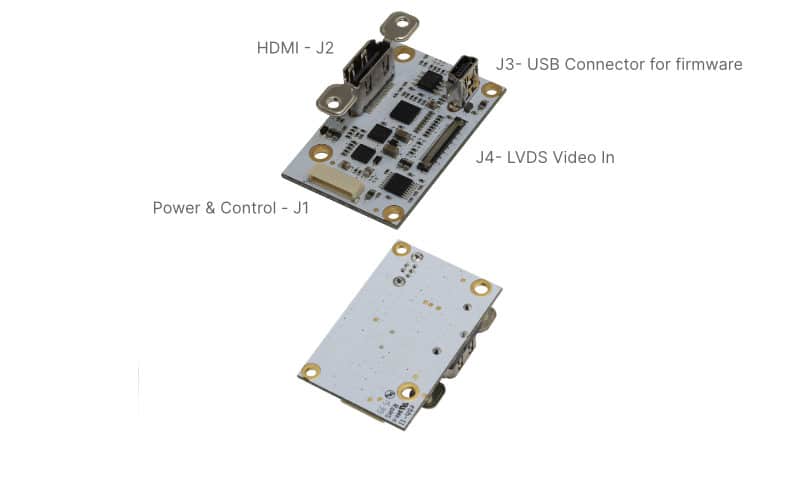

HDMI output (J2)
LVDS HDMI input (J4)
KEL USL00-30L-A
General information
Measurements
Board size= 46mm x30mm
Maximum component height = 10.5 mm (HDMI connector, J2)
PCB thickness 1.53mm
Power supply
7V to 12V DC, 8V DC recommended
Power consumption
7V to 12V DC, 8V DC recommended
Operating conditions
Ambient temperature (min/max): -10°C to +60°C
Humidity: 20%-80%
Storage conditions
Temperature (min/max): -20°C/+ 60°C = -4°F/140°F
Humidity: 20%-80%
