CVBS Interface for Block Cameras

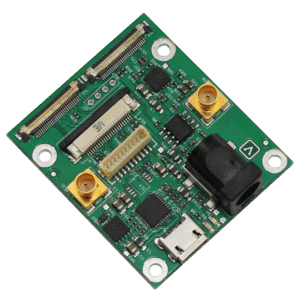

TL9801
The TL9801 CVBS interface from AIVION is connected to the digital video interface (LVDS) of the block camera. Excellent image quality is achieved since no analog-to-digital conversion is performed on these modules.
Features TL9801
- =USB2 UART based camera control
- =Supply voltage: 9V to 12V DC regulated
TL9801 Video Standard
The TL9801 supports CVBS PAL and NTSC. Note that the availability of video standards depends on the capabilities of the camera block used.

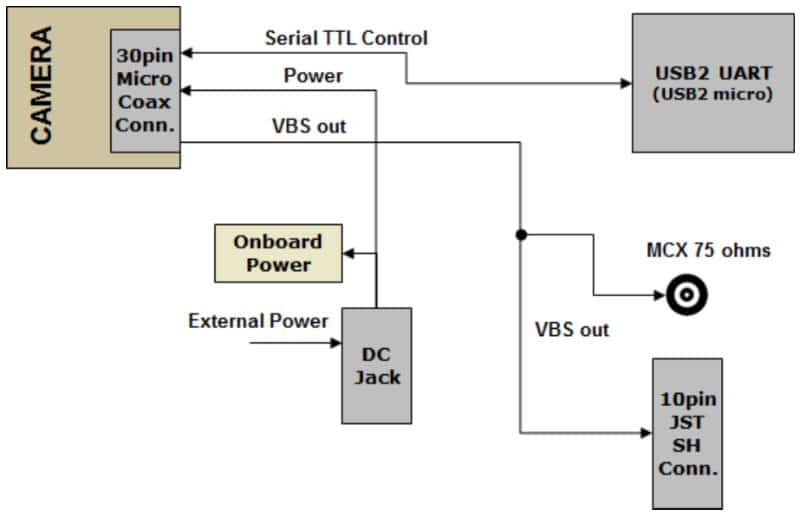

Block diagram TL9801

Request for quotation
Look at the production and evaluation kits with which you can test and use our product in your environment. Request today!
Connections

Connections overview
DCJack (J1)
WuerthElectronics, Type 694108106102
Center Pin DC Power Input Shiled GND
USB2 micro connector (J2)
MCX Coaxial connector Primary CVBS Output (J5)
CVBS Output – Board to wire connector (J6)
8 pin connector: JST BM08B-SSRS-TB
2 GND
3 Do not connect
4 Do not connect
5 Do not connect
6 GND
7 Do not connect
8 Do not connect
LVDS Video (J9)
KEL 30 connector for micro coaxial cable
LVDS digital video from camera
serial control interface
Power
General information
Measurements
Board size= 44mm x38mm
PCB thickness = 11 mm
Power supply
9V to 12V regulated
Power consumption
Operating conditions
Ambient temperature (min/max): -5°C/+ 60°C = 23°F/140°F
Humidity: 20%-80%
Storage conditions
Temperature (min/max): -20°C/+ 60°C = -4°F/140°F
Humidity: 20%-80%
